1. Management of geological disasters.
2. Reinforcement of underwater projects.
3. Supporting of underwater projects.

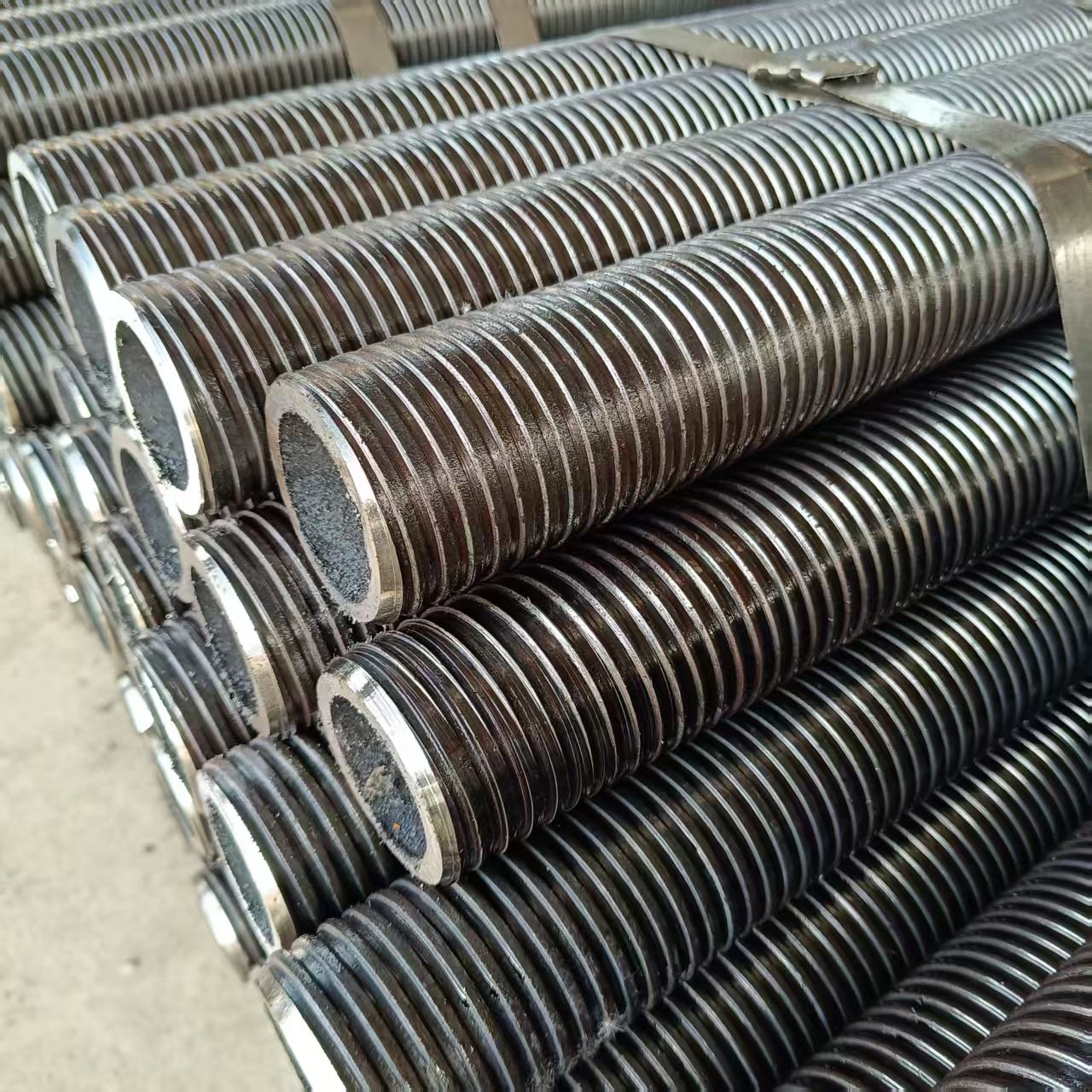

1. It adopts superior self drilling hollow anchor bolt,
2. It solves the problem of exhausting when anchoring upward or downward.Application range is broad.
3. It is convenient for operation. The anchor bar can be lengthened according to your demand.
Size | Outer Dia. | Inner Dia. | Ultimate Load | Yield Load | Weight |
SDSST73/53 | 73 | 53 | 1160 | 970 | 14.00 |
SDSST73/45 | 73 | 45 | 1582 | 1270 | 17.80 |
SDSST73/40 | 73 | 40 | 1865 | 1430 | 21.20 |
Size | Outer Dia. | Length | Weight | Note |
SDSST73 | 89 | 235 | 3.82 | With sealing structure |
95 | 245 | 5.70 |
Size | Key Size | Length | Weight |
SDSST73 | 95 | 70 | 1.90 |
Size | Dimensions | Thickness | Hole Dia. | Weight |
SDSST73 | 175×175 | 34 | 80 | 6.85 |
250×250 | 40 | 80 | 18.00 |
Size | Outer Dia. | Length | Weight |
SDSST73 | 130 | 65 | 1.08 |
Size | Outer Dia. | Weight | Application Range (Advice) |
EX | Sand, fills, gravel | ||
SDSST73/130 | 130 | 4.00 | |
SDSST73/175 | 175 | 6.80 | |
EXX | Softer sedimentary rocks such as marls, mudstones, siltstone | ||
SST73/130 | 130 | 4.00 | |
Clay Bit | Clay, soft soil, marls, loose sand or gravel | ||
SST73/150 | 150 | 4.00 | |
SST73/200 | 200 | 5.60 | |
SST73/250 | 250 | 6.75 | |
SST73/280 | 280 | 7.60 | |
SDSST73/175 | 175 | 5.20 | |
ESS-F | Weathered rock, stone walls, rubble | ||
SDSST73/130 | 130 | 4.70 | |
Established in 2014,Shanshui Special Steel is currently composed of four companies: Shanshui Special Steel, Bailian Metal, Jiuno Precision, and Euro Metal,

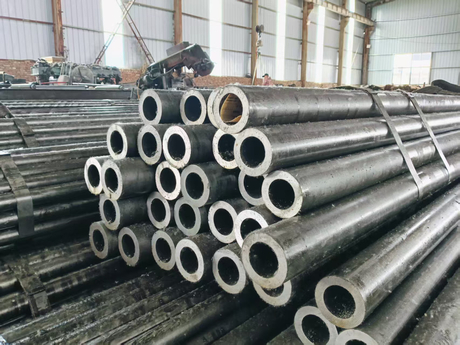

which mainly produces hot-rolled seamless pipes and cold-rolled seamless steel pipes, hollow anchor rods and accessories.
Shanshui Special Steel has 3 hot-rolling production lines and 30 finishing mills, with a monthly output of 6,000 tons and an annual sales volume of 200,000 tons.
Non-standard seamless pipes can customize according to customer ordering needs with providing third-party testing such as eddy current flaw detection and ultrasonic flaw detection.
The materials include ASTM A 106 GRADE A, ASTM A 106GRADE B, ASTM A 106 GR.C, ASTM A53 GR.B, API 5L GR.B, ASTM A336 GR.6, ST52, ST37, E355, AISI 4140,
AISI 4130, AISI 1020, AISI 1045 S355JR and other special materials. Our partners include more than 2,000 domestic enterprises, including trading companies, steel pipe manufacturers, and end customers.
We welcome friends from home and abroad to visit our factory and discuss cooperation.please contact whatsapp+86 15315780097 and email emily@midsteel.com.cn
